Mini SATA HDD Duplicator
1:1 Mini SATA HDD Duplicator-PRO118
  • Speed transfers of up to 7.2GB per minute.
  • Auto skip up to 6000 error sectors of on the HDD.
  • Auto power control protects your HDD. (HDD is only powered during operation)
  • Supports 2.5", 3.5" SATA HDD, SSD and IDE HDD via IDE_SATA convertor.
  • Supports 4 different duplication modes: Quick Copy (System & files), All partitions, Whole HDD and Percentage.​​​​​​​
  • Data Sanitization: Quick erase, Full erase, Secure erase, and DoD erase.
Product Description
Specification

4 kind of Copy Modes

4 copy modes available to meet different duplication task requirement.

12 Times Faster on Quick Copy

  • Automatically skips blank area, reduces wasted time and increases the work efficiency.
  • Supports MBR, GPT, NTFS, Linux (ext2/3/4), Mac(HFS, HFS+, HFSX), and FAT16/32/64 formats.

Various Erase Modes

  • Quick Erase, Full Erase, DoD Erase and Secure Erase.
  • DoD Erase Complies with U.S.A department of defense 5220.22M data erase standard. It will overwrite HDD 3 times, to make sure the data cannot be recover. ​​​​​​​

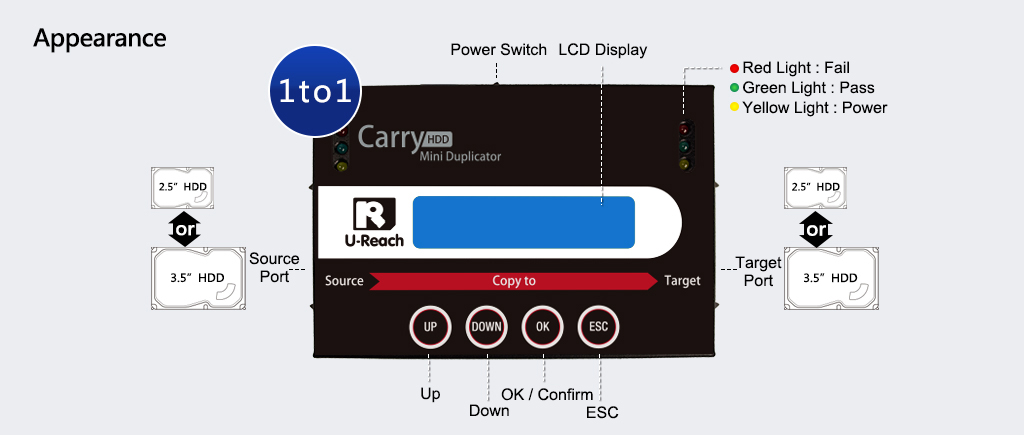

Clear LED Indicators

Each ports has 3 color indicators. It shows the real time status.

   • Red Indicator: Fail
   • Green Indicator: Pass/OK
   • Yellow Indicator: Powered

Easy to carry, Multiple Purpose

Supports Various type of Interfaces

  • Supports 2.5", 3.5" SATA HDD & SSD without adapter.
  • Supports IDE, mSATA, SATA DOM, eSATA, iVDR, M.2(NGFF) and MicroSATA with additional adapter.​​​​​​​


Model

PRO118

PRO218

PRO318

Target

1 to 1

1 to 2

1 to 3

Specifications

Max speed

(GB/ min)

7.2 GB
(*Actual performance is dependent on HDD transfer rates.)

9 GB
(*Actual performance is dependent on HDD transfer rates.)

Operation

Standalone operation

Language

English, Japanese

Display

Backlight Monochrome LCD

Status LED

LED (Green/Red/Yellow) indicator on each slot

Input key

4 push keys: (▲/UP, ▼/Down, OK/Confirm, ESC/Cancel)

Features

Copy

Quick Copy (System & Files), All Partitions Copy,

Whole HDD Copy, Percentage Copy

Compare

Bit by Bit data comparison

Erase

Quick Erase, Full Erase, DoD Erase

* PRO118: Secure Erase included.

* PRO218: Secure Erase,7-Pass Erase, Enhanced Secure Erase included.

Compatibilities

OS Supported

All (Windows, Linux, RAID, Other stand-alone systems)

HDD/SSD Compatible

w/o adapter

1.8"/2.5"/3.5” SATA HDD and SSD

w/ adapter

2.5", 3.5” IDE HDD, mSATA SSD, micro SATA, eSATA, iVDR, M.2(NGFF), Cfast, SATA DOM.

Advanced format

Support MBR, GPT, advanced format HDD (18TB above)

Hardware Specifications

Temperature range

Working temperature: 5°C ~ 45°C

Storage temperature: -20°C ~85°C

Humidity range

Working humidity: 20% ~ 80%

Storage humidity: 5% ~ 95%

Dimension(cm)

11.5x8x3

15x9.5x3

19.5x9x3

Weight (g)

360

430

650

Power

60W (12V 5A)

60W (12V 5A)

84W (12V 7A)

Power Supply

Adjustable Voltage 100V~240V, 50/60Hz

Certification

FCC, CE, RoHS
