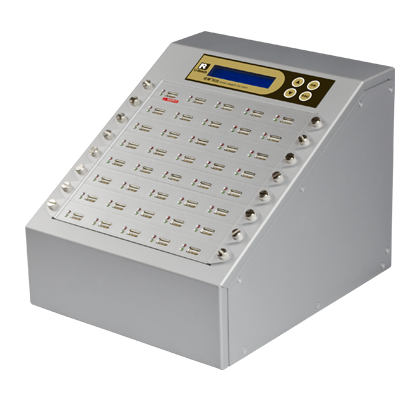

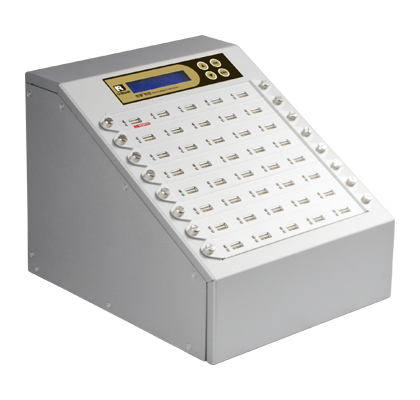

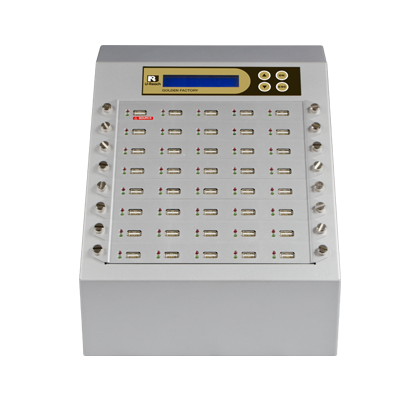

The most cutting edge in duplication technology, our Intelligent 9 series USB drive duplicator is professional, standalone and efficient. It can duplicate a full range of USB drives starting from 9 and up to 119 targets. Speed and flexibility are key factors in satisfying customer needs. Its effortless use means a PC or other software are not required; the USB drive duplicator provides a reliable, worry-free copy environment for users, without the risk of virus corruption. This USB duplicator series is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly help increase efficiency and production productivity.
The Intelligent 9 Golden series has added some more important functions – Event Log report , Durability test and Double source comparison.
The Intelligent 9 USB drive duplicator is an economical solution for data copy and distribution via USB flash drives. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.
Impeccable High Speed
Intelligent Copy Option
1. The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
2. This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.
1. The duplicator copies from the initial sector to the end, bit-by-bit.
2. There are no format limitation in this mode.
Support High Compatibilities with Various USB Devices
Due to unique redundant power design, it can support special medias with sufficient power supplies, such as: USB 2.0/3.0 external USB hard drives, MP3 players, etc.
Double Source Comparison
Double source comparison can eliminate the chance of a duplication error caused by a worn source. Use the first port as a copying source and use the second port as a compare source. It can guarantee the highest reliability and 100% correctness of the duplication result.
Quality Testing / Checking Functions
H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.
Verifies initial sector and the final sector the connected flash device within 2 seconds.
H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.
Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.
H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.
Performs user-defined burn-in tests to flash devices from 30 minutes through 30 days to determine quality and longevity.
Flash Speed and Capacity Filtration
Monitor real-time status via PC through USB cable link.
Event Log Report
Mass Duplication W Mode Write Protect USB
With a specially redesigned and improved structure, users can easily change the sockets in 3 simple steps, which takes roughly 1 minute.
• Modular Sockets
Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.
• Ergonomic & Compact Proportions
The refined ergonomic proportion reduces the flash duplicator by 50% to 70% compared to traditional chassis design.
2GB/min. (33MB/sec.) *Actual performance is dependent on media transfer speeds.
Embedded controller is designed to support capacities over 18TB+.
Constant improvement supports latest market-available devices.
Supports PC link for monitoring and event log report output
Stand alone operation
Monochrome LCD Display
LED(Red/Green) on each slot
4 push buttons(▲, ▼, OK, ESC)
Quick Copy (Systems & Files Copy)/Whole Media
Bit by Bit data comparison
Speed Test; Capacity Test; A2 Fake Card Test
H3 Test: Read only testing
H5 Test: Read & Write testing
H6 Test: Read & Write testing without data area
Quick Erase; Full Erase; DoD Erase
Use Port 2 as Compare Source
To prevent copy fail caused by worn source
Records all task details and can general report in .txt and .csv format.
Real-time PC Monitoring
Ranges from 30 mins to 30 days
Flash Devices Compatible
USB 2.0/ USB 1.1/ USB Flash/ USB 3.0/ USB HDD
USB Write Protection
Specified USB Required.
Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4), MAC(HFS, HFSX, HFS+)
Whole Media Copy: All Formats
File System Supported
All (Windows, Linux, Other stand-alone systems)
5°C ~ 45°C
20% ~ 80%
5% ~ 95%
From 24.1x19.5x11.5 to 45x30x29.5
From 1.9 to 19
FCC, CE, RoHS
