ITS-SAS Series

1 to 15 SAS/SATA HDD/SSD Duplicator and Sanitizer (ITS1500SAS)

Feature

  • Open platform design accepts all multi-interface HDD/SSD.
  • Supports both SAS & SATA interface up to 30GB *(Real performance depends on HDD’s speed)/min high transfer speed.
  • Supports 2.5", 3.5" SATA, ZIF HDD, SSD, IDE HDD and SAS via IDE_SATA convertor (IDE to SATA adapter-TB1529 included)
  • Data Sanitization: quick erase, full erase, secure erase, and DoD erase.
  • Log Report Management records all task details for better production management.
  • Cable –free connection for easier HDD insert & remove.
  • Supports SATA I/II/III and 4Kn HDD.

 All Available Models：

ITS300SAS  ITS700SAS  ITS1500SAS

Product Description
Specification
Model ITS-300SAS ITS-700SAS ITS-1500SAS
Targets 1-3 1-7 1-15
Speed 30GB/min (498MB/sec.) *Actual performance is dependent on HDD transfer rates.

Specifications

Supported Formats

Copy Modes: All Partitions/Whole HDD/Percentage copies all types of formats, both known, and unknown.

Quick Copy: FAT16/32/64, Windows (NTFS), Mac (HFS/HFS+/HFSX), and Linux (Ext2/3/4).

Operating Type

Stand-alone, non PC-based operation

Language Support

English, Japanese, Spanish

LCD Display

Backlit Monochrome LCD Display

LEDs

3 LED Indicators per Port:

Yellow (Power), Green (Pass), Red (Fail)

Control Panel

4 Push Buttons (▲, ▼, OK, ESC)

Features

Copy Modes

Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy

Skip Bad-Sectors

Manually set (Bad sector) threshold range to skip during copy process

Compare Function

Bit-by-bit hardware-accelerated data comparison

Sanitization Modes

Quick Erase, Full Erase, DoD Erase, 7 write erase, Secure Erase,

Enhance Secure Erase, and NSA Erase

Special

Features

PC Monitoring

Real-time status monitoring through PC

Log Report

Management

Monitor real-time recordings and Log Reports via PC-Link

Event log reports are generated through the USB port and saved to USB devices

Compatibilities

OS Supported

All (Windows, Linux, and other stand-alone systems)

Compatible Interfaces

w/o Adapters

1.8"/2.5"/3.5” SATA/SAS HDDs and SSDs

w/ Adapters

IDE, microSATA, mSATA and M.2

Advanced Formats

Supports MBR, GPT, and Advanced formats.

Capacity

Embedded controller is designed to support capacities over 18TB+.

Constant improvement supports latest market-available devices.

Hardware

Specifications

Power Supply

Selectable Voltage 115V or 230V, 50/60Hz

Temperature Range

Operating Temperatures: 5°C ~ 45°C (41°F ~ 113°F)

Storage Temperatures: -20°C ~ 85°C (-4°F ~ 185°F)

Humidity Range

Working Humidity: 20% ~ 80%; Storage Humidity: 5% ~ 95%

Certification

FCC, CE, RoHS

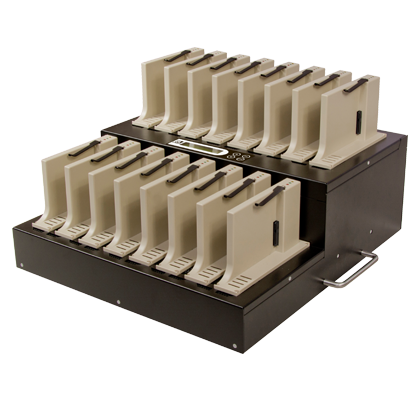

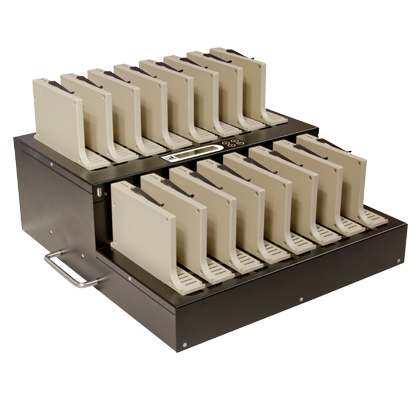

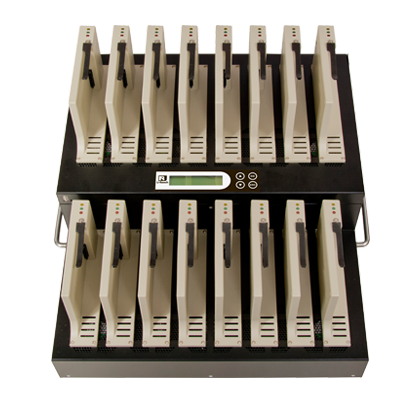

ITS series is a professional SAS/SATA HDD duplicator, specially designed for high volume duplication. Equipped with U-Reach ‘s unique multitasking technology. the ITS series Hard Drive duplicator can simultaneously copy all targets and with a high transfer speed up to 30GB per minute. We guarantee highest productivity without speed degradation, even when the number of targets increase. The ITS series SAS/SATA Hard Drive duplicator provides four copy modes: quick copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) are supported formats with quick copy.

In addition, the ITS series SAS/SATA Hard Drive duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase which can fulfill different levels of HDD wiping security.

Impeccable High Speed

U-Reach ITS-SAS Series SATA/SAS HDD/SSD duplicator is capable of copying at 30GB/min. on all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

Intelligent Duplication Modes

U-Reach ITS-SAS SAS HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Sanitization Methods

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Auto Rejection of Slow Devices

ITS-SAS Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.

Double Data Verification: Compare + CRC Checksum

U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.

Skipping Bad Sectors

End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.

Cable Free Design

Easier HDD Insertion & Removal.

Swappable HDD Port Module: easy for replacement and maintenance.

Cable free connection on HDD: supports 1.8"/2.5"/3.5” SATA HDD and SSD.

Via Adaptor: 2.5", 3.5” IDE HDD, mSATA SSD, micro SATA, eSATA, ZIF, iVDR interfaces are compatible.

Optional Adapters Supported

Event Log Report

U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
