Mirror Terabyte Series

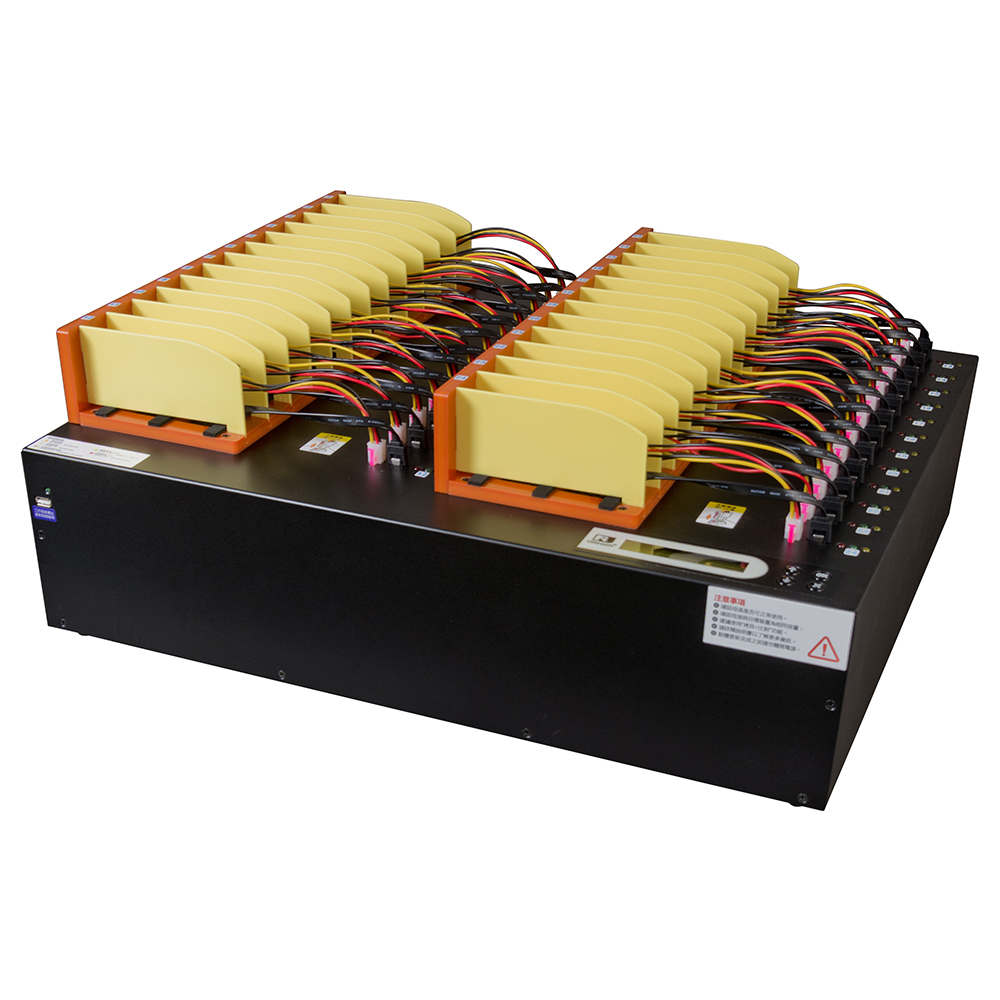

1 to 23 SATA (9GB/min) HDD/SSD Duplicator and Sanitizer (MT2400G)

Feature

  • Speed transfers of up to 9GB per minute.
  • Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux(ext2/ext3/ext4/LVM), and Mac(HFS, HFS+, HFSX.)
  • Data Sanitization: Full erase, DoD erase and Secure erase.
  • Open platform design supports multi-interface HDD/SSD.
  • Supports 2.5", 3.5" SATA HDD, SSD and IDE HDD via IDE_SATA convertor. (IDE to SATA adapter-TB1529 is optional)
  • Real time PC monitoring.
  • Log report management records all task details for enhanced production management.

 All Available Models：

MT800G  MT1600G  MT2400G

Product Description
Specification
Comparison Chart

U-Reach MT-G series is a professional SATA HDD/SSD duplicator, specially designed for high volume duplication. U-Reach adopted a unique multitasking technology that can simultaneously copy 23 HDD targets with a high transfer speed of 9GB per minute.

We guarantee the highest productivity without speed degradation, even as the number of targets increase. The MT series SATA HDD duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode.

In addition, the MT series SATA HDD/SSD duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase, which can fulfill different levels of HDD wiping security.

Impeccable High Speed

U-Reach MT Series SATA HDD/SSD duplicator is capable of copying at 9GB/min. on all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

Intelligent Duplication Modes

U-Reach MT-G HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Sanitization Methods

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Auto Rejection of Slow Devices

MT Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.

Double Data Verification: Compare + CRC Checksum

U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.

Skipping Bad Sectors

End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.

Optional Adapters Supported

Model MT600G MT800G MT1600G MT2400G
Targets 1-5 1-7 1-15 1-23
Speed 9GB/min. (150MB/sec.) *Actual performance is dependent on HDD transfer rates.

Specifications

Buffers

Up to 512MB

Supported Formats

All Partitions/Whole HDD/Percentage:
copies all types of formats, both known and unknown.

Quick Copy:
copies FAT16/32/64, Windows (NTFS), Mac (HFS/HFS+/HFSX), and Linux (Ext2/3/4).

Operating Type

Stand-alone, non PC-based operation

Language Support

English, Japanese

LCD Display

Backlit Monochrome LCD Display

LEDs

3 LED Indicators per Port:

Yellow (Power), Green (Pass), Red (Fail)

Control Panel

4 Push Buttons (▲, ▼, OK, ESC)

Features

Copy Modes

Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy

Skip Bad-Sectors

Manually set (Bad sector) threshold range to skip during copy process

Compare Function

Bit-for-bit data comparison

Sanitization Modes

Quick Erase, Full Erase, DoD Erase, and Secure Erase

Special

Features

PC Monitoring

Real-time status monitoring through PC

Log Report

Management

Monitor real-time recordings and Log Reports via PC-Link

Event log reports are generated through the USB port and saved to USB devices

Compatibilities

OS Supported

All (Windows, Linux, and other stand-alone systems)

Compatible Interfaces

w/o Adapters

1.8"/2.5"/3.5” SATA HDDs and SSDs

w/ Adapters

IDE, microSATA, mSATA and M.2

Advanced Formats

Supports MBR, GPT, and Advanced formats.

Hardware

Specifications

Power Supply

Selectable Voltage 115V or 230V, 50/60Hz

Temperature Range

Operating Temperatures: 5°C ~ 45°C (41°F ~ 113°F)

Storage Temperatures: -20°C ~ 85°C (-4°F ~ 185°F)

Humidity Range

Working Humidity: 20% ~ 80%

Storage Humidity: 5% ~ 95%

Certification

FCC, CE, RoHS

Event Log Report

U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
