1-20 PCIe SSD M.2 Duplicator and Sanitizer - PE2100-H
Brand new PE-H series M.2 PCIe SSD duplicator comes in models by several no. of ports to meet different needs of production.
It features ultra-high speed duplication at the maximum copy speed of 60 GB per minute. The speed do not decelerate even as the number of targets increases. It can also detect the devices’ protocols which greatly enhances productivity and efficiency. Furthermore, built-in source disk image management system help manage the source disk images and reduce human error.

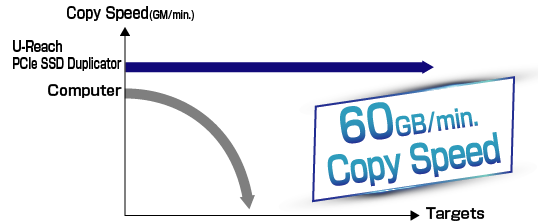

Impeccable High Speed
U-Reach High Speed PE Series PCIe SSD duplicator is capable of copying at 60GB/min. on all HDDs simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

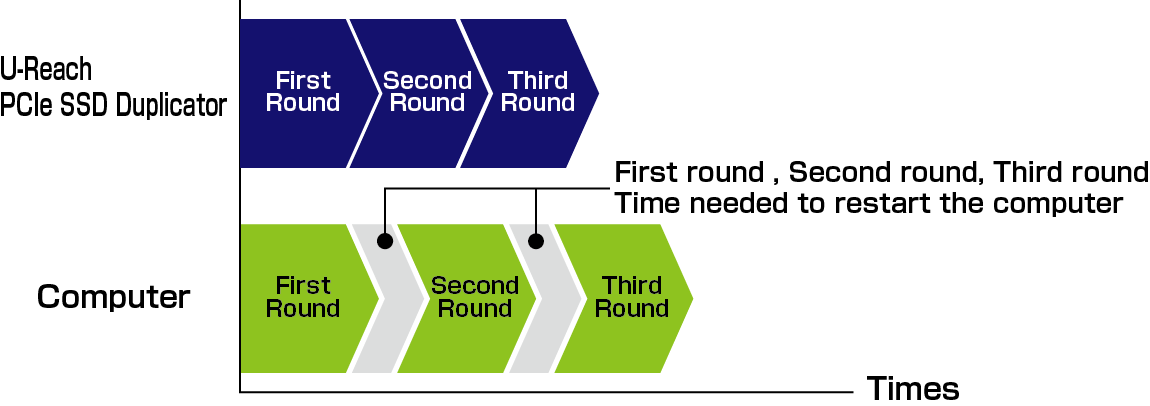

No waiting time required for duplication
When each round of duplication is completed, the next round can start immediately without having to wait or restart the machine

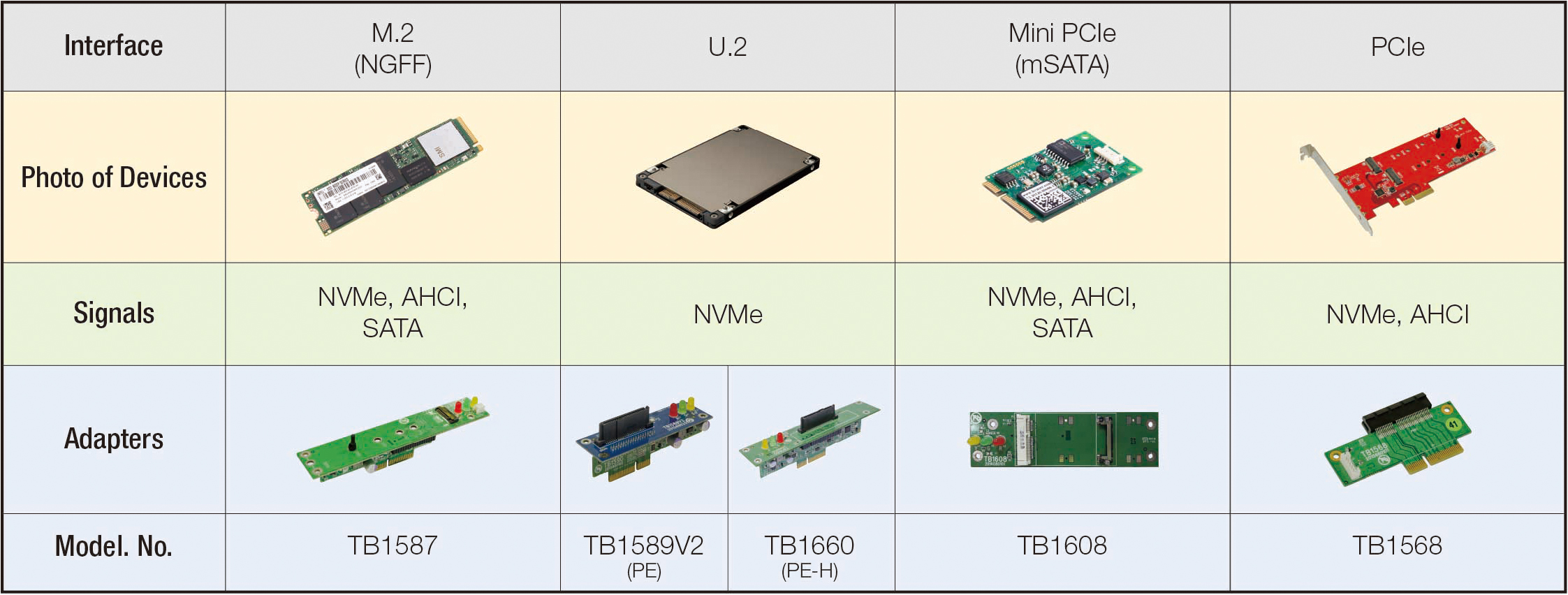

Native Support NVMe and SATA Protocols
Converter chips are not being adopted by PE-H series which deploys an M.2 interface with native NVMe/SATA protocols. This directly transfer the data to enhance the compatibility during the duplications.
Industrial-grade FPGA design not only facilitates cross interface / cross signal duplication but avoids restarting the system after each round of duplication.
Intelligent Duplication Modes
Illustration of Copy Modes
The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.
Erase HDD index table, and only takes A FEW SECONDS to complete.
Erases the entire HDD.
Complies with U.S. Department of Defense erasure standards.
A National Institute of Standards and Technology 800-88 accepted
technique for properly purging hard drives. This method is supported by almost all modern SATA/SAS HDD.

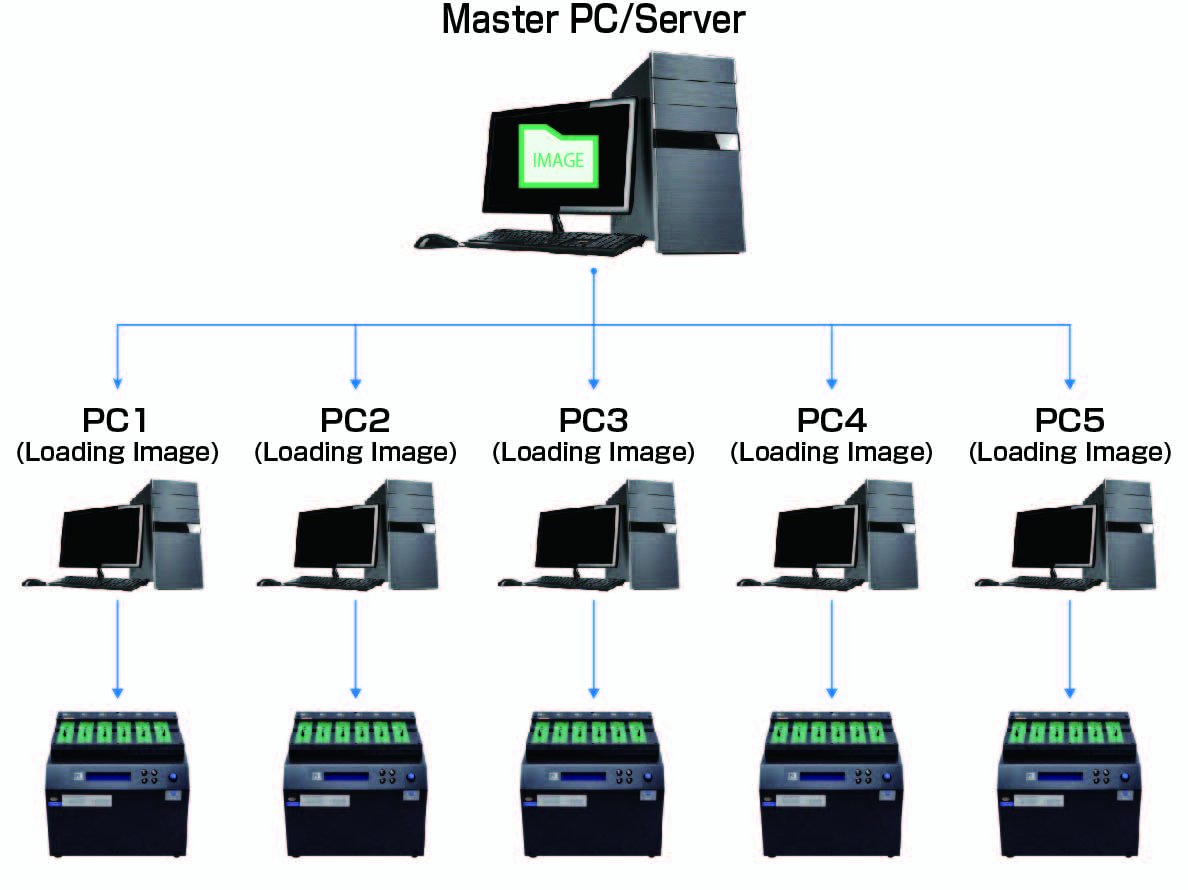

Source Management System
The administrator can through a specific software store the image files on the computer for centralized management. When needed, this image files will be sent to the duplicator for duplication. This is designed specifically for production plant as this makes it easier to mange the source and reduce human error.
Double Data Verification: Compare + CRC Checksum
Event Log Report
