PP Series
1 to 1 PC-LINK • Source Management System NVMe/SATA Cross-interface Duplicator (PP281)

Feature

  • Speed transfers up to 24 GB per minute.
  • Native support NVMe and SATA protocols.
  • Supports 1-1 cross-interface copy.
  • Supports source management system.
  • Supports hot swapping.
  • Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4) and Mac (HFS, HFS+, HFSX).
  • Data Sanitization: Quick Erase, Full Erase, Secure Erase and DoD Erase.
  • Supports M key and B+M key for M.2 SSDs; SATA devices.

 All Available Models:

281

Impeccable High Speed

U-Reach PP Series NVMe/SATA M.2 duplicator is capable of copying at  24GB/min. on all HDDs simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

Intelligent Duplication Modes

U-Reach PCIe SSD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Source management system

With connection to PC, it's available to create an image file through duplicator, and can store multiple image files for centralized management in the master hard disk. Reading the source content, modifying the image file name or deleting of a single image file are supported on PP281.

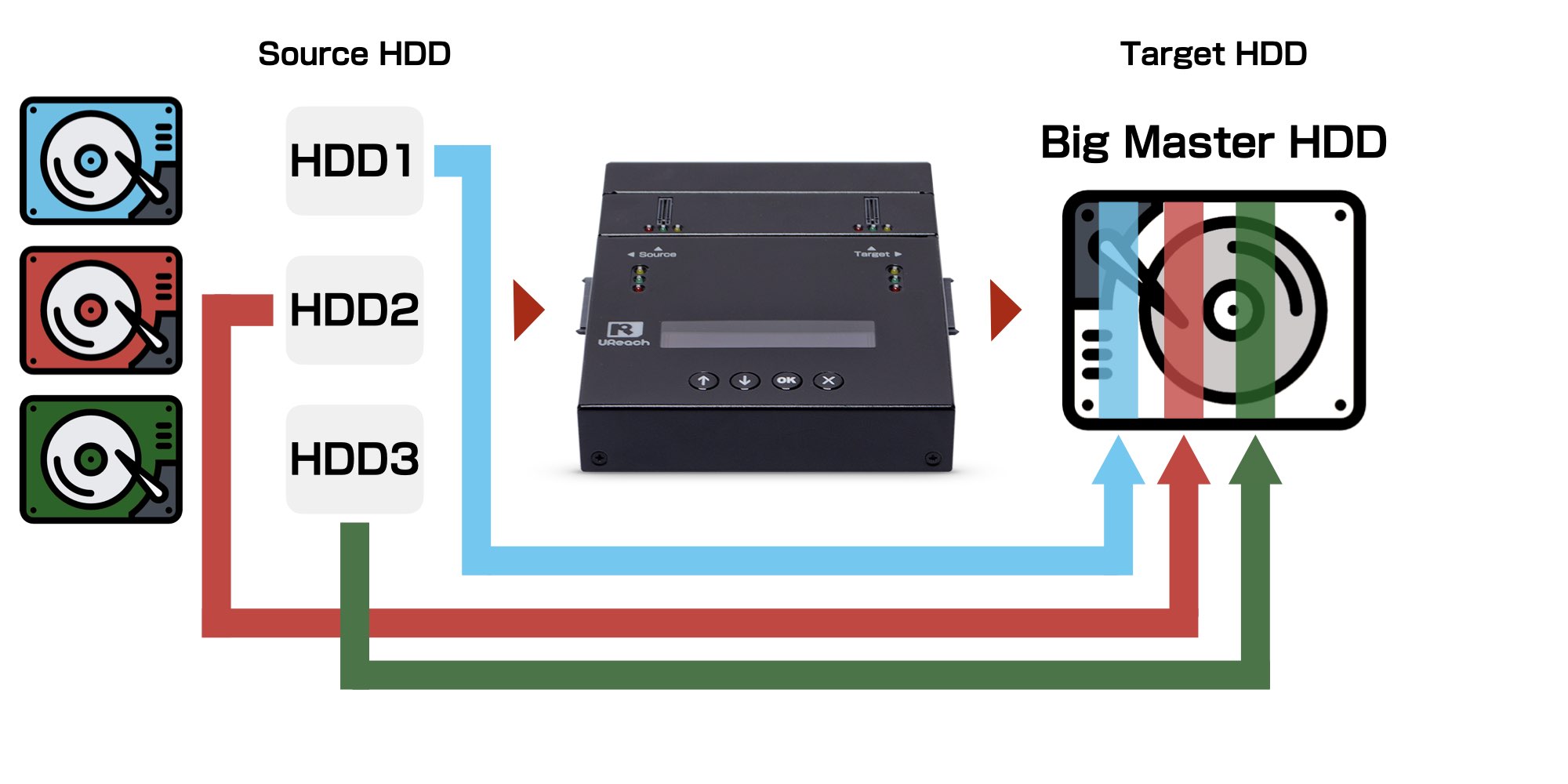

One Hard Drive can Backup Several Source Drives

It can store several drive images on a "Big Master HDD".

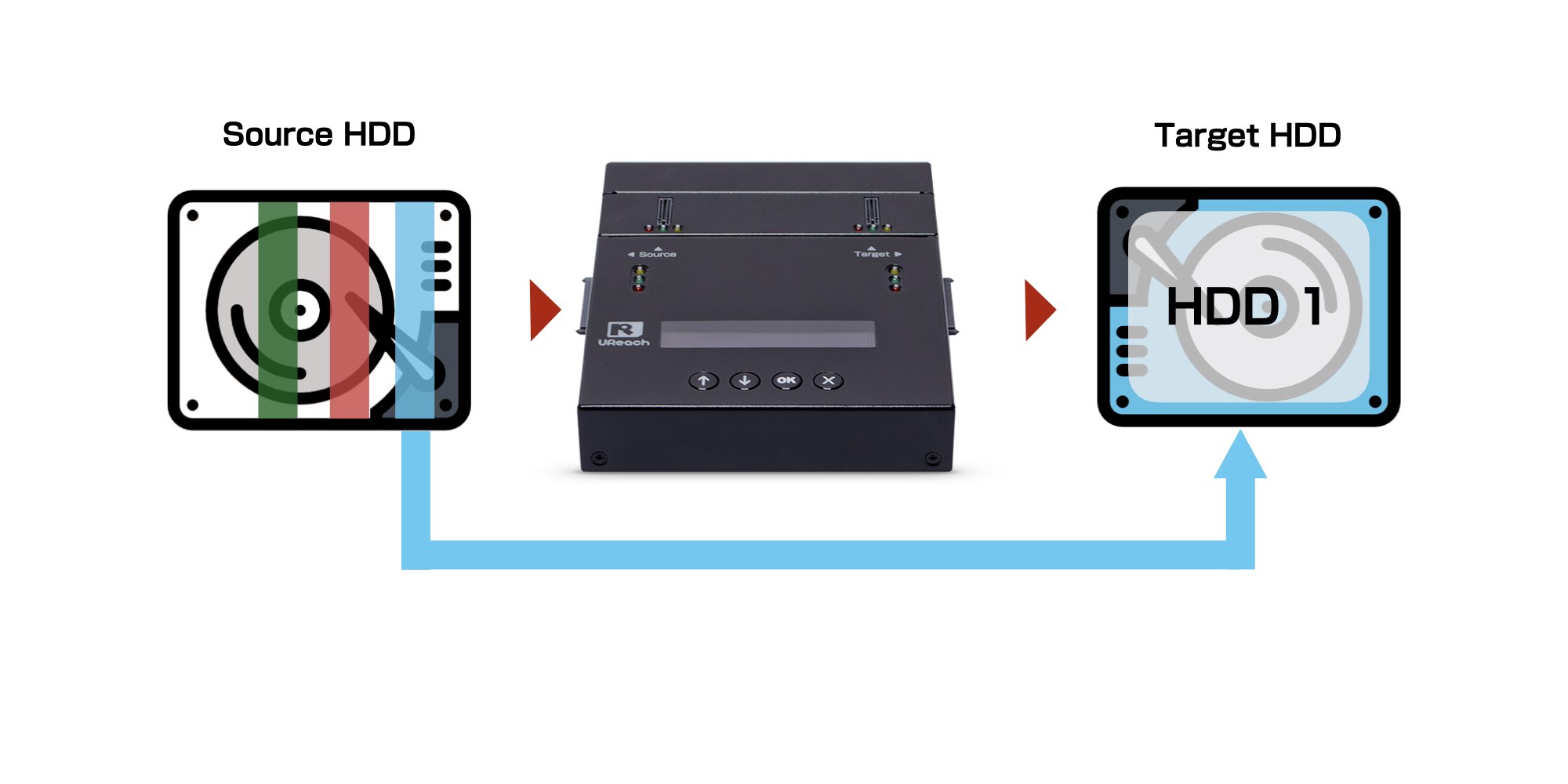

Easy to Restore Source Image Back to its Original HDD

Just select the specific image you need and restore it back to its original HDD or SSD.

No waiting time required for duplication

When each round of duplication is completed, the next round can start immediately without having to wait or restart the machine

Native Support NVMe and SATA Protocols

Converter chips are not being adopted by PCIe series which deploys an M.2 interface with native NVMe/SATA protocols. This directly transfer the data to enhance the compatibility during the duplications.

FPGA-based Platform

Industrial-grade FPGA design not only facilitates cross interface / cross-protocol duplication but avoids restarting the system after each round of duplication.

Note: When doing cross-protocol duplication, it is recommended to use a data disk. If you are copying OS system, it is recommended to use the same protocol device to ensure the device can boot into the operating system properly.

M.2 & SATA Cross-interface mode

With cross-interface design, even if you use different interface devices, you can directly copy on the duplicator without installing drivers or restarting. It can meet the needs of customers with different devices.

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Dual data verification: Compare + CRC

In addition to the bit-to-bit comparison function, PP281 uses the CRC international calculation standard to confirm the correctness of the data, and whether the source data is correct. User only needs to confirm the CRC value at the end of the copy, and can also confirm whether the copied data is correct.
