PW Series

1 to 11 Auto-detect NVMe/SATA PCIe SSD Duplicator (PW1200H)

Feature

  • Speed transfers up to 18 GB per minute.
  • Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4, LVM) and Mac (HFS, HFS+, HFSX.)
  • Data Sanitization: Quick Erase, Full Erase, DoD Erase and DoD Erase + Compare.
  • Open platform design supports NVMe & SATA Express M.2/PCIE SSD/Mini PCIe(via adapter).

 All Available Models:

Impeccable High Speed

U-Reach PW Series PCIe SSD duplicator is capable of copying at 18GB/min. on all HDDs simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

No waiting time required for duplication

When each round of duplication is completed, the next round can start immediately without having to wait or restart the machine

Intelligent Duplication Modes

U-Reach PCIe SSD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Sanitization Methods

Cross Interface Duplication

U-Reach PW Series PCIe SSD Duplicatpr can automatically detects NVMe/SATA signal facilitating cross interface/cross-protocol duplication.

Note
When doing cross-protocol duplication, it is recommended to use a data disk. If you are copying OS system, it is recommended to use the same protocol device to ensure the device can boot into the operating system properly.

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Auto Rejection of Slow Devices

PW Series M.2 PCIe SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.

Dual data verification: Compare + CRC

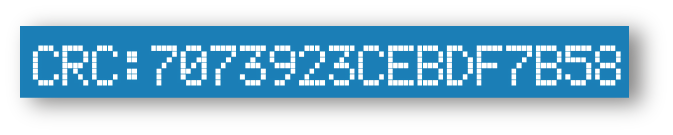

In addition to bit for bit comparison, PW adopts CRC as an error-detecting code to ensure the accuracy of the copied data. After each round of duplication is completed, the users just have to check whether CRC value shown on the LCD of the duplicator is identical.
