Super One Series

1 to 1 HDD/SSD Duplicator and Sanitizer (HD-SU01)

Feature

  • Speed transfers of up to 9GB per minute.
  • Bit-by-bit Data Comparison.
  • Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux(ext2/ext3/ext4), and Mac(HFS, HFS+, HFSX.)
  • Data Sanitization: Quick erase, Full erase, DoD erase and Secure erase.

 All Available Models：

HD-SU01  HD-SU03  HD-SU05  HD-SU07  HD-SU11

Product Description
Specification

Super One office series is a professional SATA Hard Disk Drive duplicator, specially designed for easy office duplication. U-Reach adopted a unique multitasking technology that can simultaneously copy HDD targets with a high transfer speed of 9GB per minute.

We guarantee highest productivity without speed degradation even as the number targets increases. The Super One series SATA Hard Drive duplicator provides four copy modes: quick copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) format are all supported with quick copy mode.

In addition, the Super One series SATA Hard Drive duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase which can fulfill different levels of security for hard drive wiping.

Model No

HD-SU01

HD-SU03

HD-SU05

HD-SU07

HD-SU11

Targets

1-1

1-3

1-5

1-7

1-11

Speed

9GB/min. (150MB/sec.) *Actual performance is dependent on HDD transfer speeds.













Specifications



Copy Format

All Partitions/Whole HDD Copy/Percentage Copy : All Formats

Quick Copy: FAT16/32/64, NTFS, Linux (Ext2/3/4), HFS/HFS+/HFSX

Operating Type

Stand-alone operation

Language Support

English, Japanese

Display

Backlight monochrome LCD Display

LED

Yellow (power),Green (pass), Red (fail)

Control Panel Button

4 Push Buttons(▲, ▼, OK, ESC)





Features

Copy Function

Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy

Bad-Sector

Manually set threshold to skip bad sectors during copying process

Compare Function

Bit-by-bit data comparison

Erase Function

Quick Erase, Full Erase and DoD Erase







Compatibilities

OS Supported

All (Windows, Linux, and other stand-alone systems)

HDD/SSD

Compatible

w/o Adapter

3.5” SATA HDD

w/ Adapter

2.5” SATA/SSD

Advanced format

Supports MBR, GPT, and Advanced formats.

Capacity

·             Embedded controller is designed to support capacities over 18TB+.

·             Constant improvement supports latest market-available devices.



Hardware Specifications

Power Supply

Adjustable Voltage 115V-230V, 50/60Hz

Temperature Range

Working: 5°C ~ 45°C; Storage: -20°C ~ 85°C

Humidity Range

Working Humidity: 20% ~ 80%; Storage Humidity: 5% ~ 95%

Certification

FCC, CE, RoHS

Impeccable High Speed

U-Reach Super One Series Hard Drive duplicator is capable of copying at 9GB/min. on all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

Intelligent Duplication Modes

U-Reach Super One Series Hard Drive duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Sanitization Methods

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Double Data Verification: Compare + CRC Checksum

U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.

Skipping Bad Sectors

End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.

Interface Compatibility

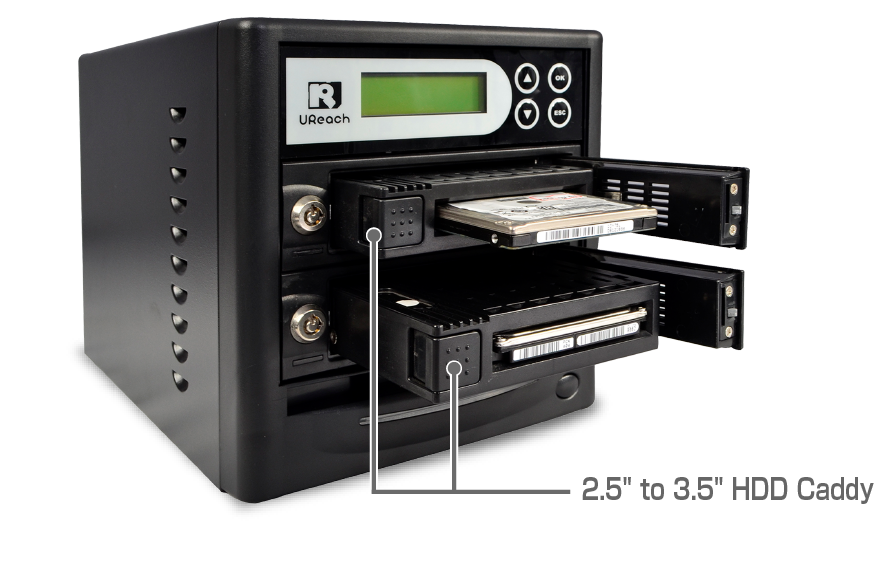

Supports 2.5” HDD/SSD, and M.2 (NGFF).

(requires 2.5" to 3.5" HDD Caddy ).
